Description

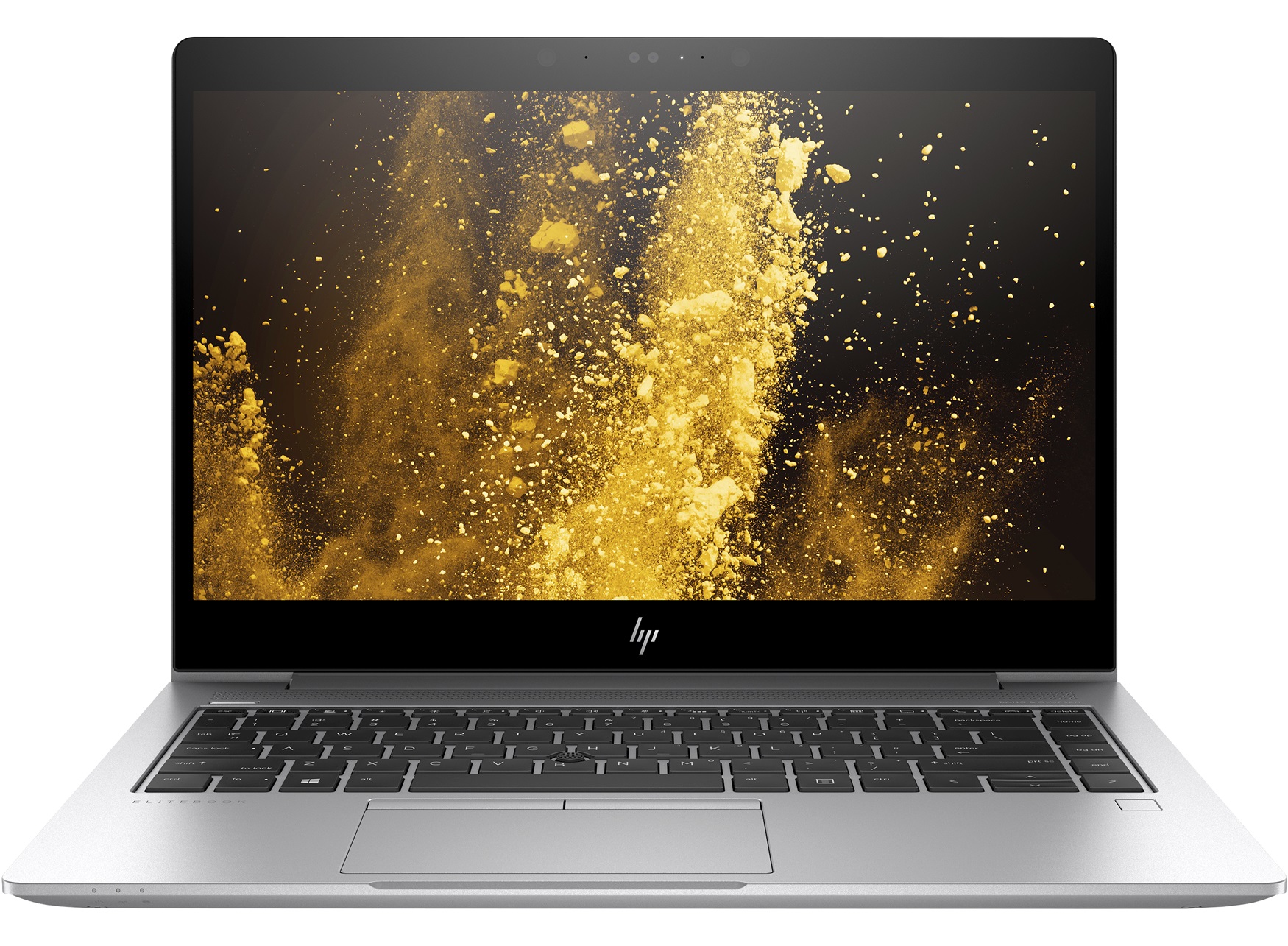

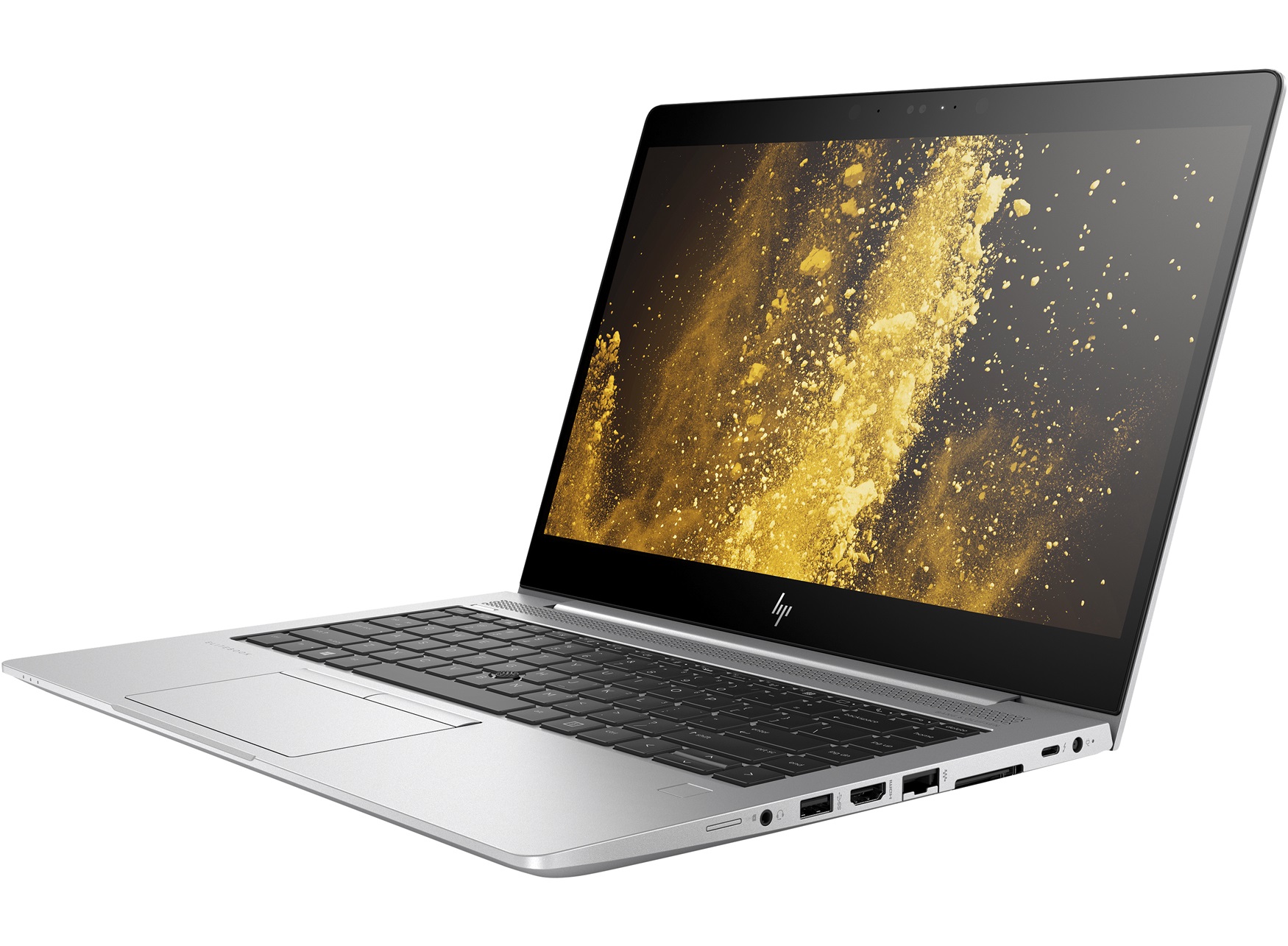

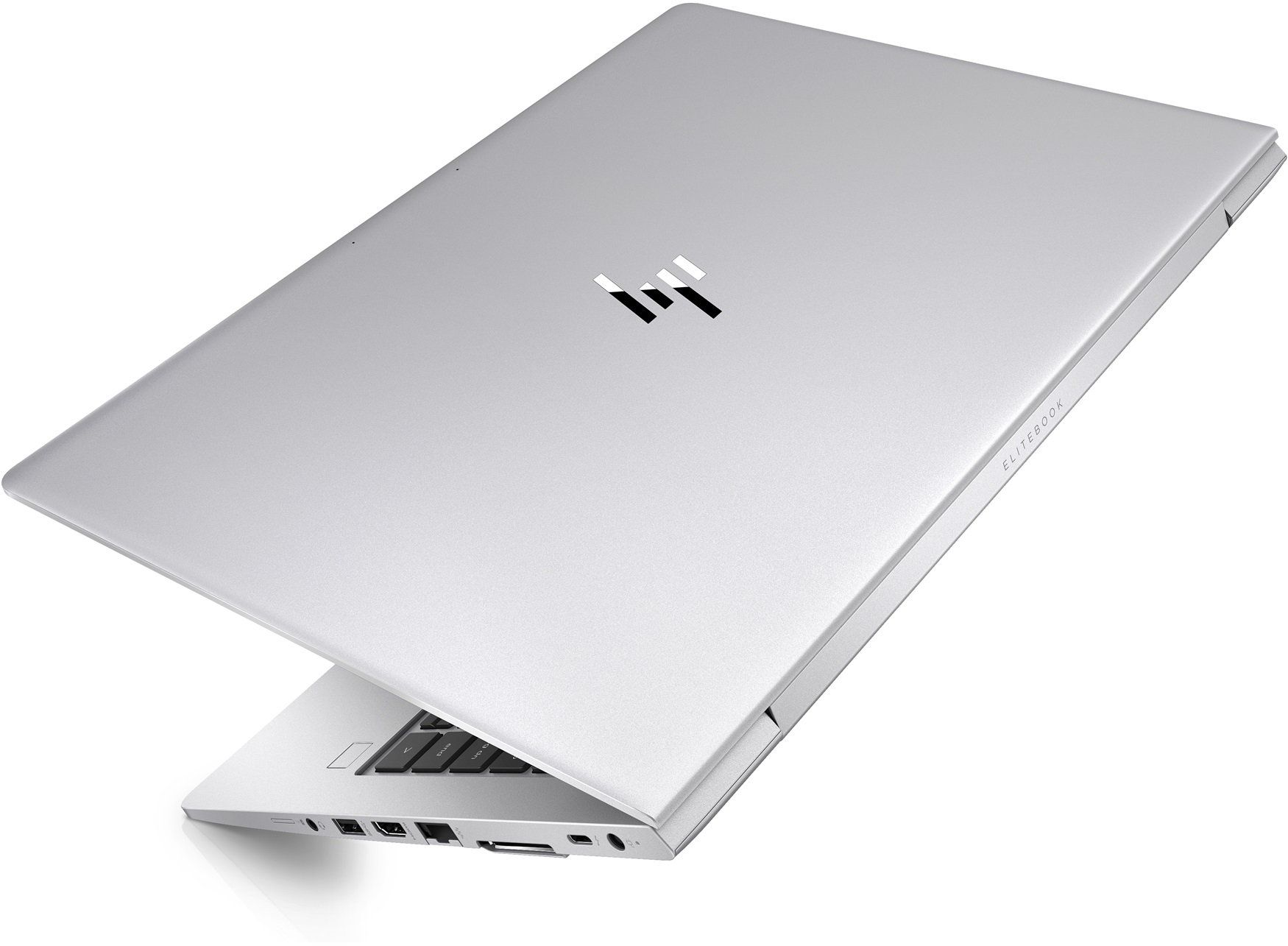

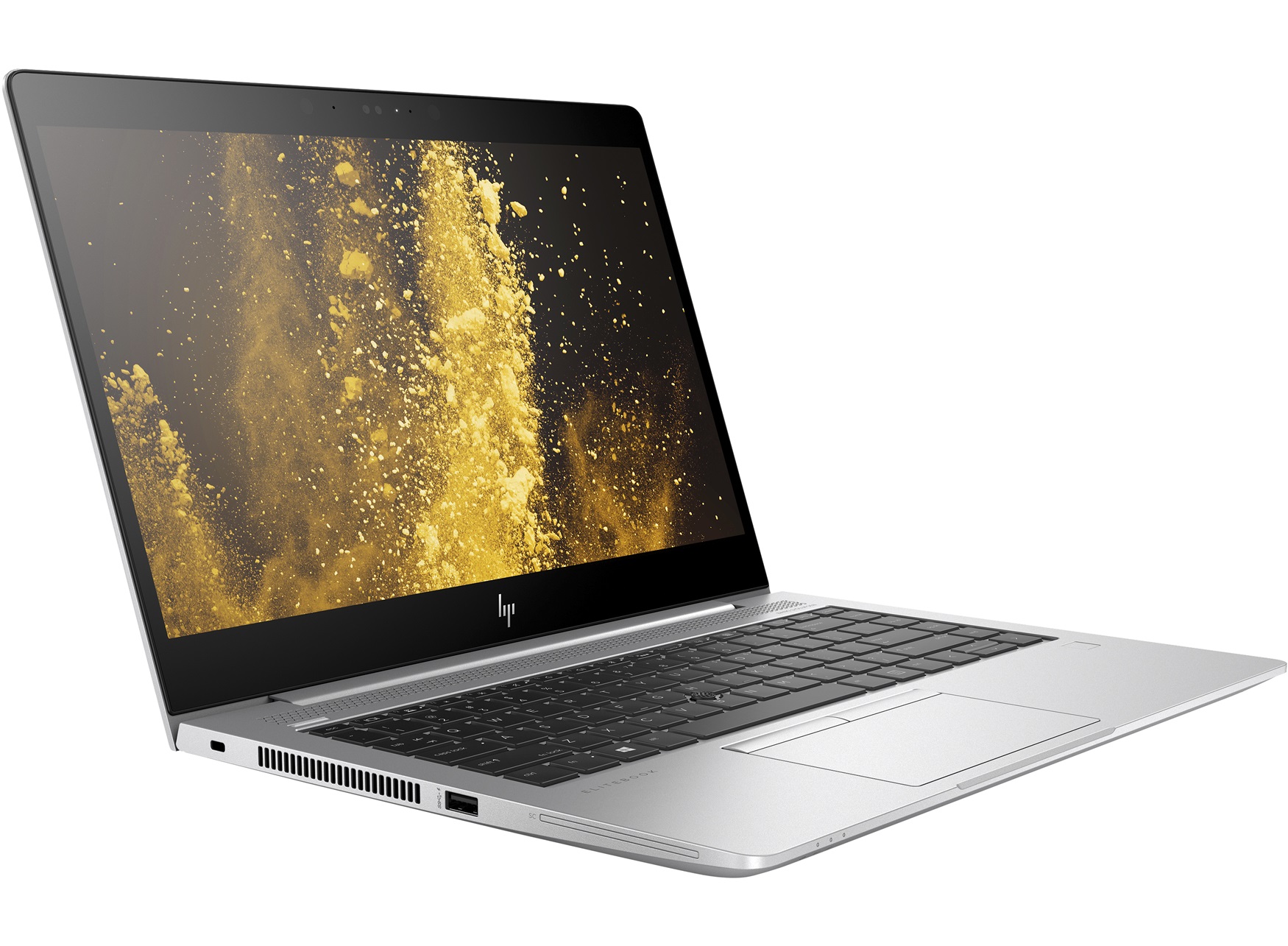

HP Elitebook 840 G5
Specs Sheet
– Display: 14.0”, Full HD (1920 x 1080), IPS
– HDD/SSD: 512GB M.2 PCIe NVMe SSD
– RAM: 16GB DDR4, 2400 MHz
– Dimensions: 326 x 234 x 17.9 mm (12.83″ x 9.21″ x 0.70″)
– Weight: 1.48 kg (3.3 lbs)
– Body material: Aluminum
– Ports and connectivity:
– 1× USB Type-A 3.2 Gen 1 (5 Gbps)
– 1× USB Type-A 3.2 Gen 1 (5 Gbps)
– 1× USB Type-C 3.2 Gen 2 (10 Gbps)
– HDMI 1.4b
– Card reader
– Gigabit Ethernet
– Wi-Fi 802.11ac (2×2)
– Bluetooth 4.2
– Audio combo jack
– Smart card reader
– Features: HD 720p webcam, 3 multi-array microphone, Bang & Olufsen stereo speakers, Security Lock slot, spill-resistant keyboard with drain, ambient light sensor
Design and Construction
– High-quality aluminum design, feels sturdy. Weight is 1.48 kg (3.27 lbs) for non-touch, 1.61 kg for touch version. Dimensions 326 x 234 x 17.9 mm.
– One-hand opening lid with glass-protected touchscreen panel. Camera, microphones, and face-recognition sensors on top bezel. Lid is relatively resistant to torsion.
– Large speaker grill with Bang & Olufsen branding. Keyboard lacks NumPad but includes joystick and dedicated mouse buttons. Surprisingly long travel for a thin device, good feedback. Glass-covered touchpad is fast and accurate, with embedded NFC antenna. Fingerprint reader on the right is fast and accurate.
Disassembly and Maintenance
– Easy to open with 8 screws.
– Supports up to 32GB DDR4-2400 MHz (2x16GB) .
– 512GB Samsung PM981 NVMe SSD (varies by region).
– 3-cell 50Wh battery held by 5 torx screws.
Display Quality
– Tested panel: Chi Mei CMN14D4 (N140HCA-EAC), 14.0″ Full HD IPS.
– Peak brightness 221 nits center, 212 nits average, 12% max deviation.
– Color temperature 6410K (close to 6500K standard).
– Contrast ratio 1220:1 (1150:1 after calibration).
– sRGB coverage only 53% — lacks punchiness in color.
– Response time: Fall + Rise = 26 ms .
– PWM present up to 60 nits, but at high frequency — not exceptionally harmful.
Battery Life
– Tested at 120 nits, Wi-Fi on, power saving:
– 11 hours web browsing
– 8 hours video playback
– 2 hours gaming
Source: LaptopMedia HP EliteBook 840 G5 review (10 May 2018)
