HP EliteDesk 800 G5 Mini

Description

HP EliteDesk 800 G5 Mini

Model: HP EliteDesk 800 G5 Desktop Mini
Product Type: Business Mini PC
Processor: Intel Hexa-Core i5-9500T, 9th Gen, 6 Cores / 6 Threads, 2.2 GHz Base / up to 3.7 GHz Turbo, 9MB Cache, 35W TDP, vPro available
Graphics: Intel UHD Graphics 630, Integrated
Display Support: Dual 4K via 2x DisplayPort 1.2, Up to 4096 x 2304 @ 60Hz
Storage: 256GB PCIe NVMe M.2 SSD, Configurable up to 2TB. Supports 2x M.2 slots + 2.5″ SATA bay
Memory: 16GB DDR4 2666MHz, 2 SODIMM slots, Up to 64GB supported
Operating System: Windows 11 Pro 64-bit, Windows 10 Pro optional
Weight: 1.05 kg (2.31 lbs)
Dimensions: 177 x 175 x 34 mm (6.97″ x 6.89″ x 1.38″)
Chassis: Black with Silver front panel, MIL-STD-810G tested
Audio: Internal speaker, Universal audio jack with CTIA headset support
Security: HP Sure Start Gen5, HP Sure Run Gen2, HP Sure Click, HP Sure Sense, TPM 2.0, HP Client Security Manager, Nano Security Lock, Optional Smart Card Reader
Wireless: Intel Wi-Fi 6 AX200 2×2, Bluetooth 5.1, Optional Intel vPro
Ports:

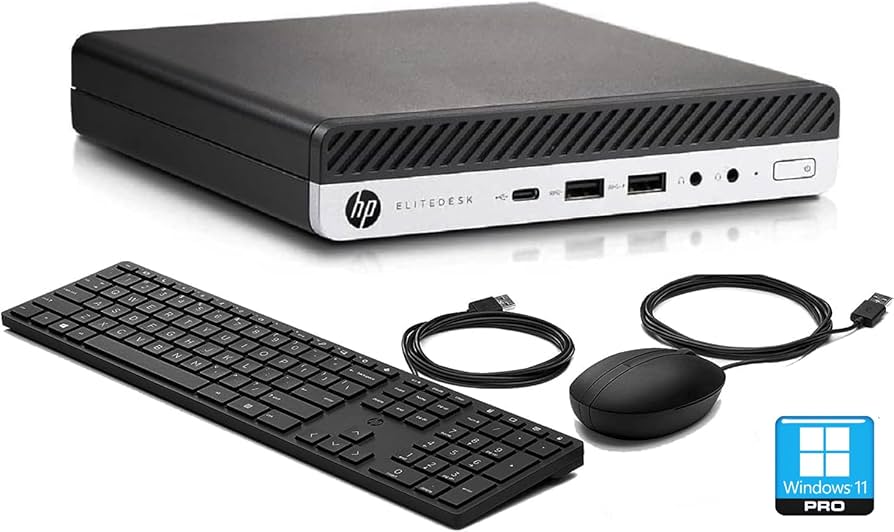

Front: 1x USB 3.1 Gen 2 Type-C, 1x USB 3.1 Gen 2 Type-A, 1x USB 3.1 Gen 1 Type-A charging, 1x Headphone/Mic combo

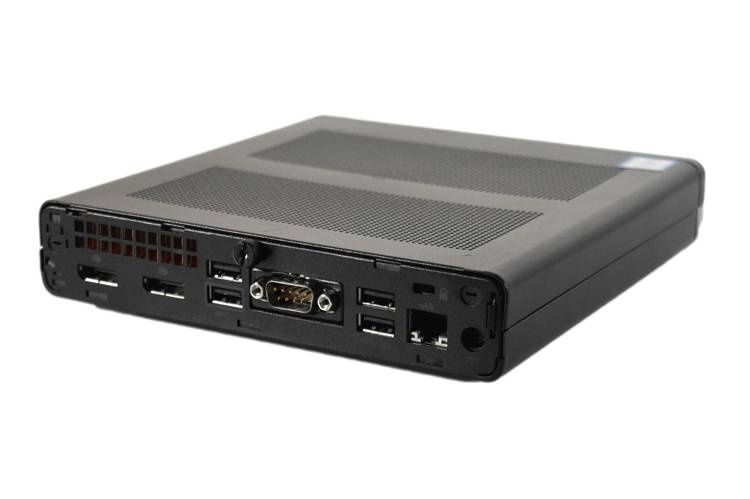

Rear: 3x USB 3.1 Gen 1, 2x DisplayPort 1.2, 1x RJ-45 Ethernet, 1x Optional port (VGA, HDMI 2.0, DisplayPort, USB-C, or Serial)
Network: Intel I219-LM Gigabit Ethernet
Power: 65W / 90W External AC adapter
Expandability: 1x M.2 2280 PCIe NVMe, 1x M.2 2230 WLAN, 1x 2.5″ SATA bay
Manageability: Intel vPro Technology, HP Manageability Integration Kit
Release Date: 2019

• The EliteDesk 800 G5 Mini is a 1-liter business desktop for space-constrained offices.
• The 35W i5-9500T delivers strong multi-core performance for productivity with low heat.
• Dual 4K DisplayPort, Wi-Fi 6, vPro, and enterprise security features make it ideal for corporate deployment.
• It mounts behind monitors and supports Windows 11.
• No PCIe x16 slot, so not upgradable for gaming or dedicated GPU
